Product Gallery
Product photography across all C-glass flake grades, application images, and full packaging format reference.
Grade Images
Product images across all four C-glass flake grades, showing particle morphology and surface characteristics.

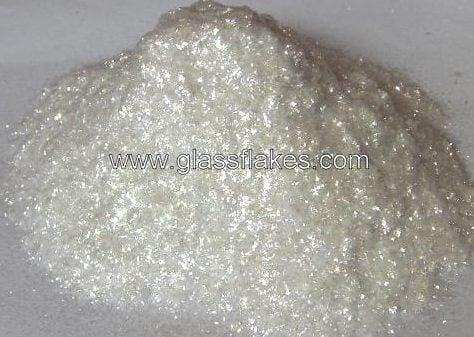

Coarse bulk-fill grade. Average flake diameter 400–800 μm. Optimal for thick-film barrier coatings and heavy anti-corrosion systems.

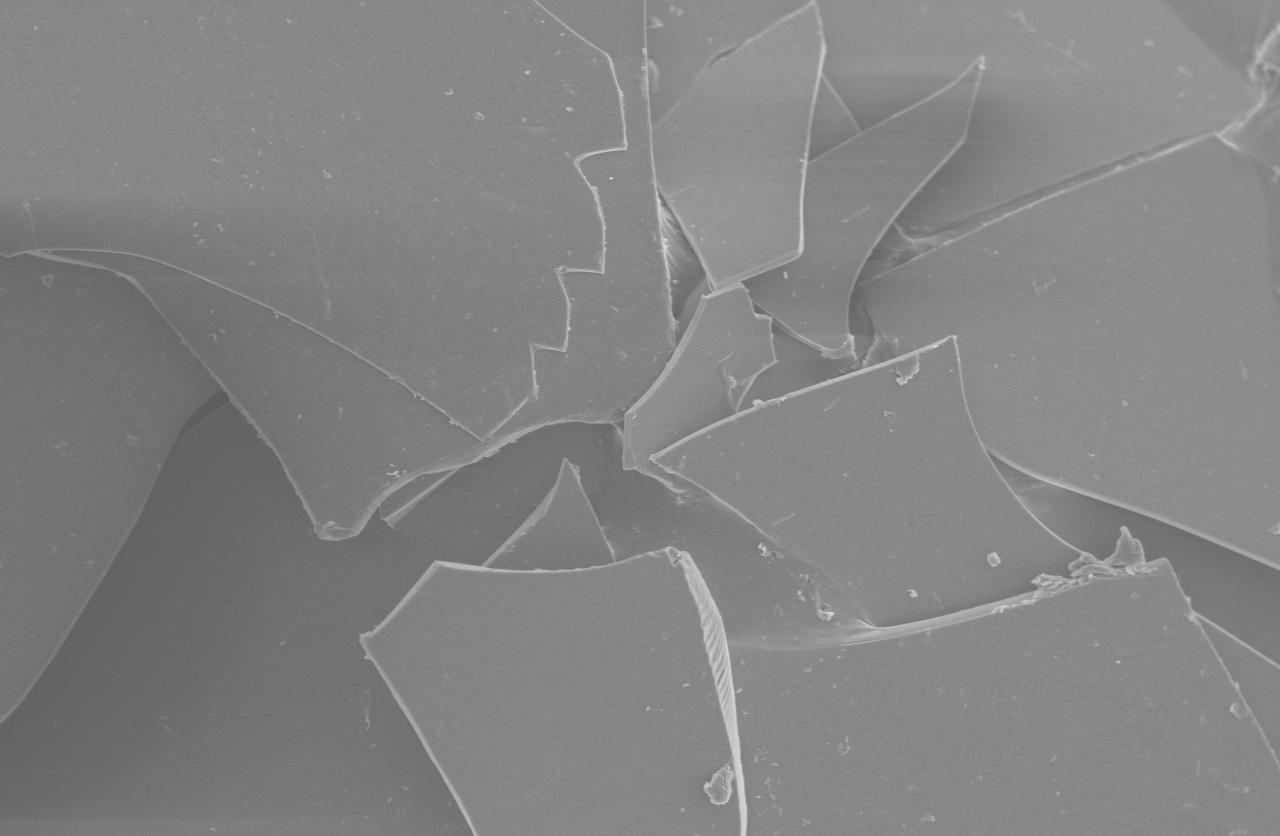

Close-up showing irregular platelet morphology and smooth fractured surfaces typical of milled C-glass flakes.

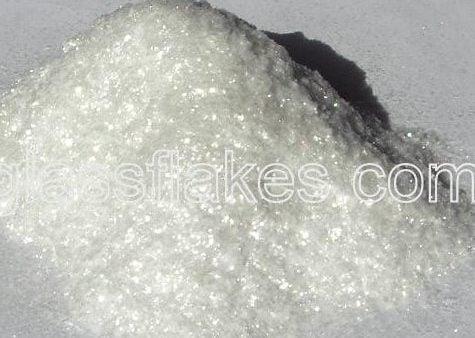

Spray-grade particles with optimal aspect ratio for barrier performance. Bimodal distribution creates a close-packed lamellar barrier.

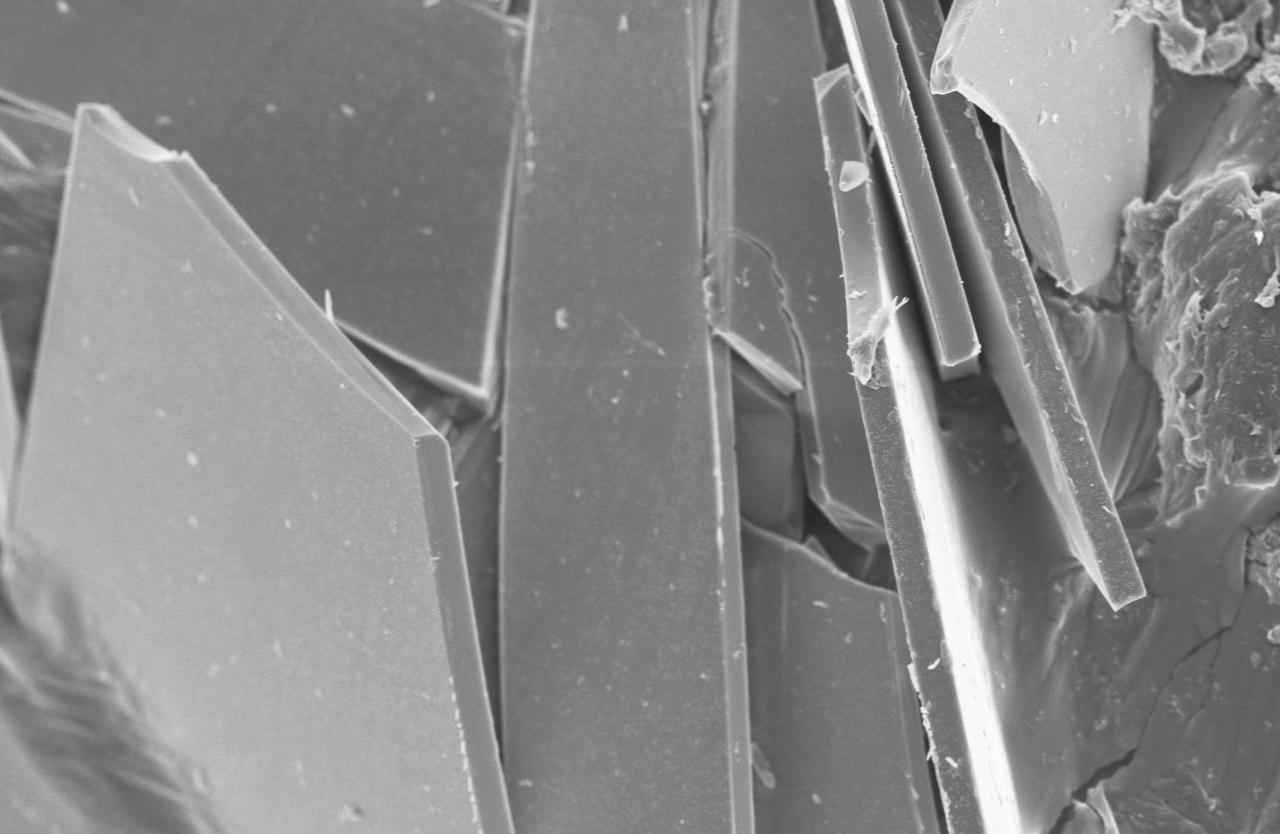

Overlapping lamellar arrangement in cured epoxy matrix. Tortuous diffusion path extends moisture vapour transmission resistance by up to 10×.

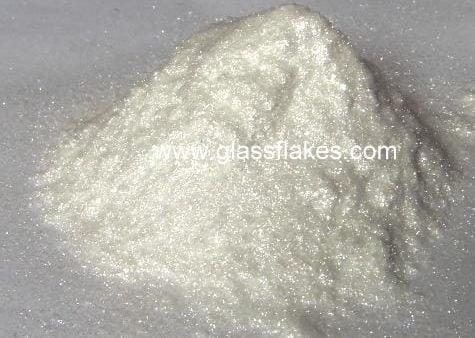

Tight distribution around 150 μm median. Enables uniform spray application with conventional airless equipment at 200–400 μm DFT.

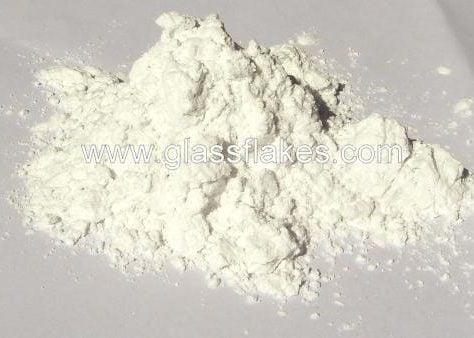

Micronised flakes with D50 ≈ 15 μm. High surface-area-to-volume ratio promotes strong polymer adhesion and pigment-like dispersibility.

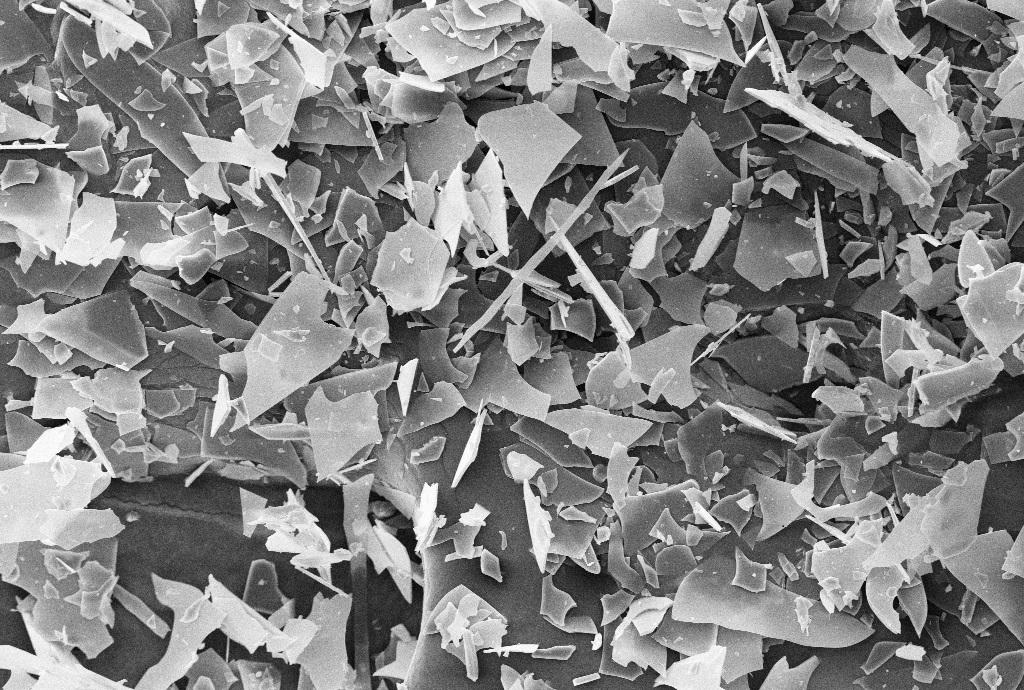

Ultra-fine particles under magnification. The micronised grade allows spray application at 75 μm DFT while delivering superior moisture vapour transmission resistance.
Application Images
Glass flake in industrial coatings, adhesives, and specialty applications, plus our manufacturing facility.
Glass flake epoxy coating applied to industrial steel structure, demonstrating excellent film build and surface finish.
C-400 ultra-fine flakes incorporated into a high-performance adhesive compound for structural bonding applications.
C-400 grade used as a functional pigment in decorative and protective coating formulations.

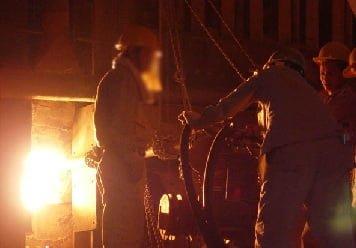

Our Wenan, Hebei facility. Precision milling and classification equipment ensures consistent grade quality and surface treatment uniformity.
Packaging Formats
Standard 20/25 kg moisture-proof bags and palletised bulk shipments. All grades available in all surface treatment options (N / V / E).

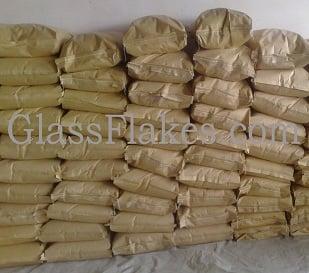

Standard production bag. Moisture-proof construction with heat-sealed closure. Labelled with grade, lot number, and surface treatment code. Dimensions: 80 × 50 × 15 cm.
Full pallet of bags, stretch-wrapped and corner-protected for container loading. Polythene wrapping provides moisture protection during transit. Pallet dimensions: 123 × 113 × 135 cm.
Request Free Sample or Full Quotation
Sample kits (20 kg bags in all four grades) shipped free of charge worldwide. Full technical support included.
