C-28Coarse Bulk-Fill Glass Flake for Heavy-Duty Lining Systems
C-28 is our coarsest milled C-glass flake — engineered for thick-film barrier coatings and heavy-duty tank linings in aggressive immersion service. The large platelet geometry delivers maximum barrier overlap per kilogram of filler.
Key Specifications
About C-28

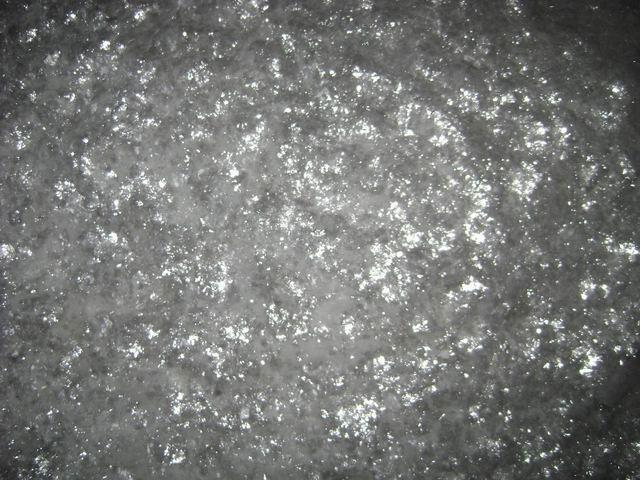

C-28 consists of milled C-glass platelets with a nominal diameter of 300–1700 μm and a uniform 5 ± 2 μm thickness, yielding an aspect ratio of up to 560:1. The coarse size enables high loading in thick-film epoxy and vinyl-ester linings (typically 800 μm to 2 mm DFT) where a dense, overlapping lamellar barrier is required to resist hydrostatic pressure, immersion, and aggressive chemical attack. C-28 is recommended for trowel- and roller-applied systems. Available in three surface-treatment variants to suit epoxy, vinyl-ester, or untreated polymer matrices.
Available Variants
PSD Profile
Full Specifications
| Median Diameter (D50) | 600 μm |
|---|---|
| Nominal Thickness | 5 ± 2 μm |
| Bulk Density | 0.2 g/cm³ |
| Max Aspect Ratio | 560 : 1 |
| Glass Type | C-Glass (calcium-aluminosilicate) |
| Surface Treatments | N (none) · V (vinyl-ester) · E (epoxy) |
| Recommended Loading | 15–30 wt% |
| Moisture Content | < 0.2% |
| Packaging | 20 / 25 kg moisture-proof paper bag |
| MOQ | 1,000 kg |
| Lead Time | 2–4 weeks from order confirmation |
| Trade Terms | FOB Tianjin · CNF · CIF |
Product Gallery
Typical Applications
Recommended Coating Systems
- • Vinyl-ester tank linings (use C-28V)
- • Epoxy heavy-duty immersion coatings (use C-28E)
- • Polyester FRP lay-up compounds (C-28N)
- • Glass-flake modified mortars and grouts
Related Products
Request C-28Sample & Quotation
Free sample kits shipped worldwide — you only cover freight, which may be discounted on your first order. Typical MOQ 1,000 kg; lead time 2–4 weeks.
